Needle Free Y Needleless Connector Medical Device for 325 PSI (Negative, Neutral, other luer lock connector valves or T type)

FOB Reference Price:Get Latest Price
  • 1 - 35 Boxes
    $1,980.00
  • 36 - 359 Boxes
    $1,860.00
  • >=360 Boxes
    $1,740.00
Lead Time:
Quantity(Boxes) 1 - 1 2 - 36 37 - 360 >360
Est. Time(days) 3 15 30 Negotiable
Customization:
Customized packaging (Min. Order: 6000 Boxes)
New Idea Design (Min. Order: 1 Boxes)

More

OEM/ODM (Min. Order: 1 Boxes)
Change color (Min. Order: 300000 Boxes) Less
Samples - $1,980.00 /Boxes, 1 Boxes (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Properties:
drug preparation system
Place of Origin:
Taiwan, China
Brand Name:
Chi Feng
Model Number:
11C01 or other type
Instrument classification:
Class II
Product name:
Needleless connector
Material:
PC+ABS+SILICONE (Medical grade)
Application:
transfer drug, infusion set, MRI set...etc
Certificate:
ISO13485
Usage:
Single-use
Size:
Total length*maximum diameter 36.3mm * 12.75mm
Color:
Blue and natural
Packing:
6,000pcs/box in Bluk
Box size:
36*36*30cm
Production Environment:
Clean room class 100,000
Packaging & Delivery
Lead Time :
Quantity(Boxes) 1 - 1 2 - 36 37 - 360 >360
Est. Time(days) 3 15 30 To be negotiated
Needleless Connector

Needle free connector for Neutral Pressure

Gen 2
Neutral pressure
Comply with ISO 594(ISO 80369-7) standards
Easy to clean swabable surface
Neutral pressure, reduce the pain of insert and pull out the needle
Low residual, only 0.016ml priming volume when disconnected
Biocompatibility test pass
Easy to visualize the fluid path
Small size, acquired patents from multiple countries

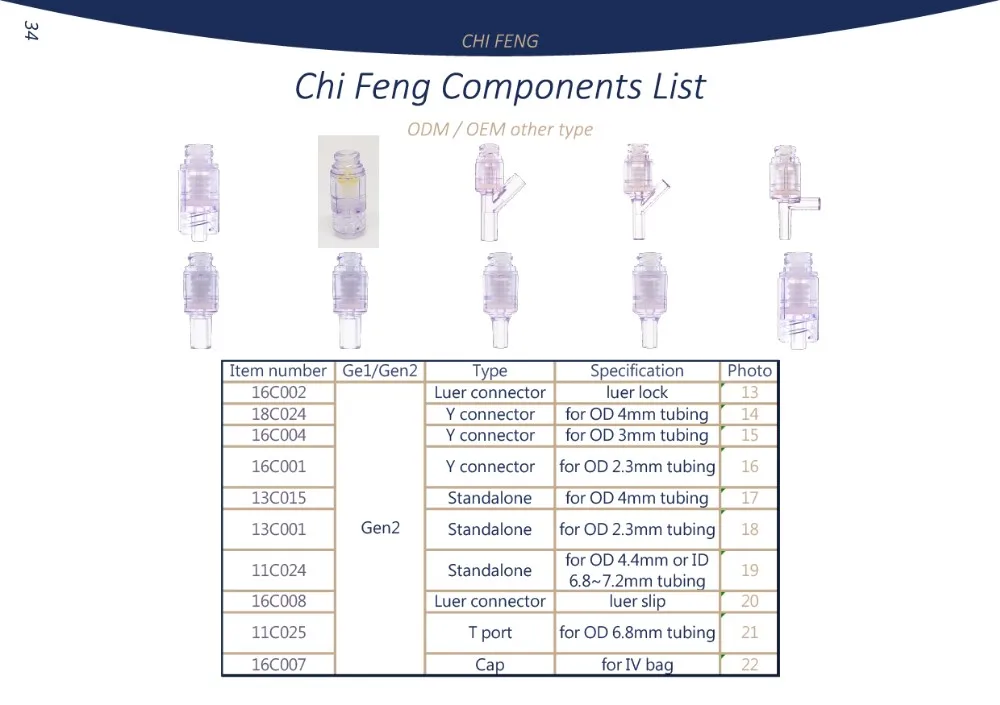

Needle Free Y connector, Luer Lock connector, T connector, Straight connector...we can OEM/ODM size for you.

Item number
Ge1/Gen2
Type
Specification
16C002
Gen2
Luer connector
luer lock
18C024
Y connector
for OD 4mm tubing
16C004
Y connector
for OD 3mm tubing
16C001
Y connector
for OD 2.3mm tubing
13C015
Standalone
for OD 4mm tubing
13C001
Standalone
for OD 2.3mm tubing
11C024
Standalone
for OD 4.4mm or ID 6.8~7.2mm tubing
16C008
Luer connector
luer slip
11C025
T port
for OD 6.8mm tubing
16C007
Cap
for IV bag
Product Description

P/N : 18C025
18C025 + 18C024 = SUPERIOR ! ! !
Better than our CML, conform with USP 797

Transfer the drug without needle.

Product Type:
Blue and Yellow
Material:
PC (PIN SPIKE) / PP (CAP)

Evolution of Our Closed Male Luer and Needle Free Connector

We started designing closed male luer from 2012 and were officially marketed in Turkey in 2013. Until today, our closed male luer and Gen2 connector evolved to a new level with little or no residue on the surface. We hope that the real intention of USP 797 will be albe to protect pharmacists and healthcare professionals from occupational accidents caused by cancer drugs.

Use Our CSTD Products

Will help the medical staff to avoid drug infection.

(Picture from our customers, in Taiwan and Turkey.)

Related Products

Specification FOR CLOSED MALE LUER

Volume
Total length*maximum diameter 36.3mm * 12.75mm
Number of parts
Assembled with 4 components


Surface residue
Connect with Gen2 connector P/N:18C024
Thread matching


Conform to ISO 594
*Comformed


Pressure Test
The maximum operating pressure to bear on
*200psi


Residual
The internal residual of after the operation is completed
*0.24ml


Flow Rate
*80ml/min, higher than the patient's head more than 90CM.

Company Profile

CLEAN ROOM
One (ISO class 8 / US class 100 000) cleanrooms over 661 sq meters for injection and assemble.
Cleanrooms certified to ISO 14644 for airborne particulate

Exhibition
Our Advantages

30 years experience for

Mold design

Established since 1989, have over 30 years of experience of mold manufacturing.

We have made multiple molds for gear parts, medical consumables, medical equipments,

electronic mechanism, stationary and other plastic injection mold.

With all those expertise and wealth of experience, we are confident of mold making.

We can make different kinds of mold products with any functional requirements.

PRODUCT DESIGN &

DEVELOPMENT

Product development
Programme costing
Fit for purpose analysis

Material selection: Suitability to meet client specifications, suggestions on alternatives to existing materials.

Simple Mold Flow Analysis
Design for manufacture
Tool, component & device design
CAD modelling
3D modelling (SoildWorks)

ODM SERVICES

A continuous line service

If you have a sample or just a conceptual plan, or even a thought of making a future plastic medical product, we can discuss and make it together. or you want to start producing, Chi Feng also can producing, assembling and deliver the products.

Certifications
Packing & Delivery

Packaging

For Air cargo and ship cargo

Each size are 36*36*30cm

COA

You will see our COA

for every time shipping.

QC OK MARK

QC for every box.

Have LOT# to check.





We can print your LOGO on the box


(Just samples use sticker label)
