Needle Free Negative High Pressure Compatibility Infusion Connector
Medical Grade PVC
30000 Piece/Pieces per Week
Packaging & Delivery
Carton : 36*36*30 cm
．Comply with ISO 594 standards. ．Simple mechanism design. ．Easy to clean swabable surface. ．High pressure compatibility. ．Pass biocompatibility test. ．Patented model designs with multiple countries' patents.
Comply with the ISO 594 standards, and can comply with most other infusion products.
Simple mechanism structure, only three components for assemble, significantly reduce the rate of lose effectiveness.

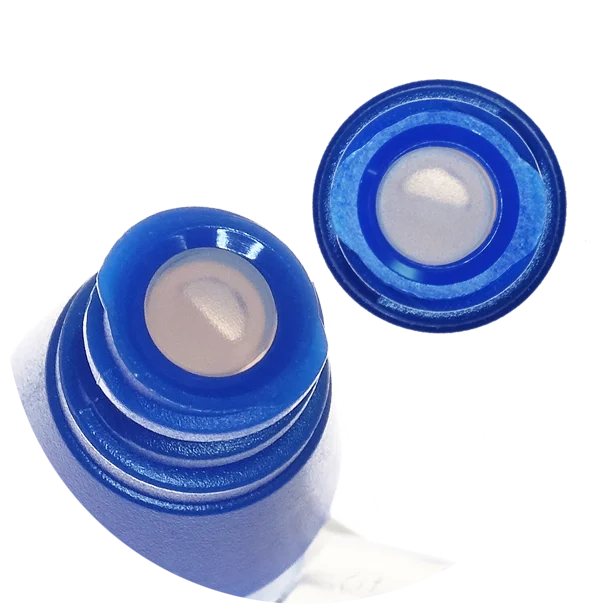

The swabable surface design to fit most clinical practices, easy to swabbed and no residual on the surface.
Resist high pressure from inserting up to 7kg/cm^2.
Metal components are not included, MRI compatibility.
Product IntroductionNeedless infusion devices develop and produce by Chifeng plastic, and acquired patents from multiple countries. The Gen 1 needleless series did not contain any metal material, The fitting part follows the ISO 594 standards and completes the test, it can fit any infusion products who follow the ISO 594 standards. As much as possible reduce the application of force of linking, in order to avoid the fitting part self-dropping by external force or internal pressure.
Housing and septum material are using medical grade polycarbonate and have passed medical grade silicone, bio-caompatibility test, lipid and alcohol resistance. The structure of housing passed the blood compatibility test, when blood stream passes the vavle, reduce the hemolysis problem. Silicone seal can activation up to 200 actuations, and the swabable surface is sealed arround the top of housing, to create first microbial barrier protection. According to the fluorescein dye test, when disconnect and swab the surface, the fluorescein dye did not residual on the swabable surface.
The Chifeng Gen 1 needleless series can also use in the high pressure infusion therapy, when the insert part are not connecting, it can resist the pressure maximum 7kg/cm2 from the pipeline, when connect, it can resist maximum 24kg/cm2 (350PSI).

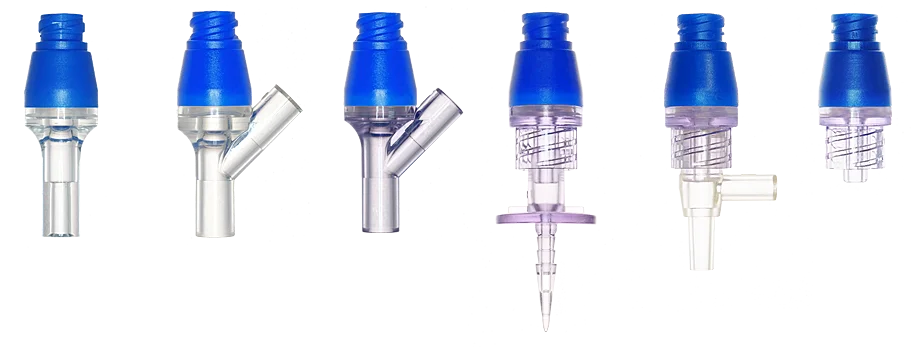

Products name Chifeng Gen 1 needleless infusion connector series
Materials Medical grade polycarbonate and medical grade silicone, biocompatibility test pass.
Pressure type Negative pressure.
Functional activation Up to 200 actuations.
Flow rate 150 ml / min (at 36 inch head height)
Residual volume 0.3 ml
Reflux Volume 0.3 ml
Flush Volume 1.5 ml
Disconnect force <1kg
Pressure leakage Up to 7kg/cm2 (Disconnection) / 24kg/cm2 (350PSI)(Connection)
．Alcohol Compatible : Yes. Note : None.
．Lipid Compatible : Yes. Note : None.
Visit our website
Needleless infusion on-line catalog
ODM / OEM
Chi Feng Plastic is not just only undertake the plastic injection parts production and injection mold building, but also can do all kinds of plastic products design like ODM and OEM.
We have clients all over the world, Taiwan, Japan, United-State, France and China. They all entrusted us for making products. We can also cooperate with your confidentiality requirements.
If you have a sample or just a conceptual plan, or even a thought of making a future plastic medical product, we can discuss and make it together. or you want to start producing, Chi Feng also can producing, assembling and deliver the products.

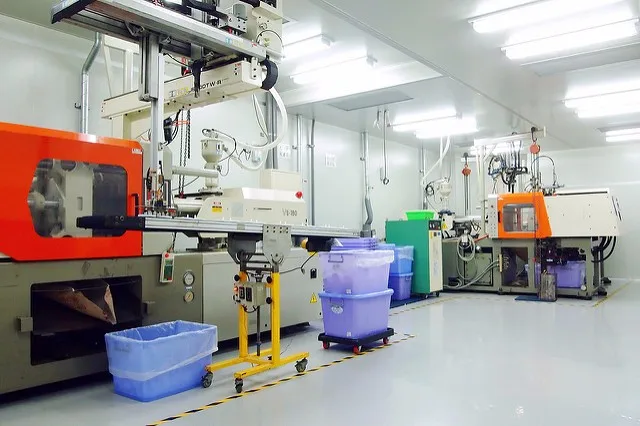

Cleaning Injection Room

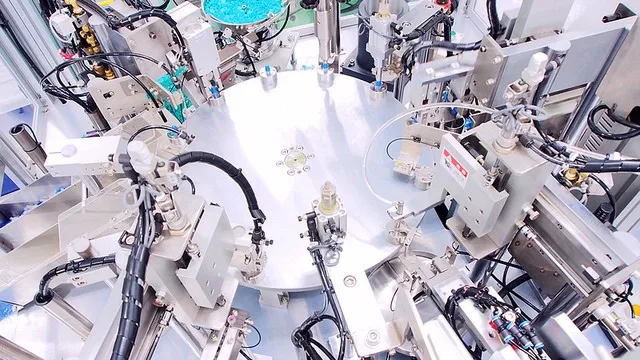

Auto Assembly Machine

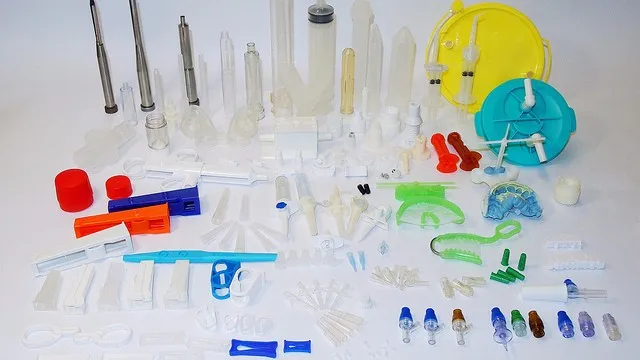

Kinds of Medical Products
